CMH/CDM
lamps and LED
|
CMH/CDM
lamps (Ceramic Metal Halide lamps)
|
|
|
Ceramic metal
halide lamp (CMH lamp) is the third generation of
high-intensity gas lighting source. It is a kind of
light source which combines the good light-color
performance of quartz metal halide lamp and the
excellent luminous efficiency of high-pressure
sodium lamp. It is one of the new high-efficiency
and energy-saving lighting sources. Ceramic metal
halide lamp is an excellent light source for
commercial, stadium, road and other large space
lighting. Its high red light ratio also makes it an
ideal choice for indoor growth lamp.
*Ceramic metal
halide lamp (CMH lamp) is also called
ceramic discharge metal halide lamp (CDM lamp) |
|
|
CMH-ED |
CMH-TT |
CMH-T |
CMH-TD
|
|
|
Features:
High Intensity Discharge (HID) lamps with a color
rendering exceeding Ra85-Ra95
Excellent luminous efficiency 110-130lm/W
Compact lighting solution for growth chambers and greenhouses
Excellent PPF (Photosynthetic Photon Flux) value of 1.9 micromoles per second.
Excellent light maintenance—94% of the PPF at
1000 hours.
Stable color temperature during the entire life
time.
Wide color temperature from 2800K-6000K
Long life time 12000h
Applications:
The CMH lamps are often used in shop lighting, street lighting, especially in agriculture and intensive
horticulture plants of all kinds.
|
|
|
|
CMH
lamps, CDM lamps, CDMH lamps, ceramic metal halide
lamps, ceramic discharge metal halide lamps |
Type |
Power
(W) |
Current
(A) |
Luminous Flux
(Lm) |
Color rendering
index (Ra) |
Color temperature
(K) |
Bulb
(B) |
Length
(mm) |
LCL
(mm) |
Average Life
(H) |
φ
(mm) |
TT-70W/830 |
70 |
0.98 |
6300 |
≥85 |
3000 |
E27 |
156 |
120 |
15000 |
38 |
TT-70W/940 |
70 |
0.98 |
6100 |
≥90 |
4200 |
E27 |
156 |
120 |
15000 |
38 |
TT-100W/830 |
100 |
1.2 |
9000 |
≥85 |
3000 |
E40 |
195 |
132 |
15000 |
47 |
TT-100W/940 |
100 |
1.2 |
8880 |
≥90 |
4200 |
E40 |
195 |
132 |
15000 |
47 |
TT-150W/830 |
150 |
1.8 |
15000 |
≥85 |
3000 |
E40 |
195 |
132 |
15000 |
47 |
TT-150W/940 |
150 |
1.8 |
13500 |
≥90 |
4200 |
E40 |
195 |
132 |
15000 |
47 |
TT-250W/830 |
250 |
3.0 |
25000 |
≥85 |
3000 |
E40 |
240 |
155 |
15000 |
47 |
TT-250W/940 |
250 |
3.0 |
23000 |
≥90 |
4200 |
E40 |
240 |
155 |
15000 |
47 |
TT-315W/830 |
315 |
3.15 |
35000 |
≥85 |
3000 |
E40 |
283 |
175 |
15000 |
52 |
TT-315W/940 |
315 |
3.15 |
33000 |
≥90 |
4200 |
E40 |
283 |
175 |
15000 |
52 |
ED-70W/830 |
70 |
0.98 |
6300 |
≥85 |
3000 |
E27 |
141 |
88 |
15000 |
55 |
ED-70W/940 |
70 |
0.98 |
6100 |
≥90 |
4200 |
E27 |
141 |
88 |
15000 |
55 |
ED-100W/830 |
100 |
1.2 |
9000 |
≥85 |
3000 |
E40 |
182 |
120 |
15000 |
76 |
ED-100W/940 |
100 |
1.2 |
8880 |
≥90 |
4200 |
E40 |
182 |
120 |
15000 |
76 |
ED-150W/830 |
150 |
1.8 |
15000 |
≥85 |
3000 |
E40 |
182 |
120 |
15000 |
76 |
ED-150W/940 |
150 |
1.8 |
13500 |
≥90 |
4200 |
E40 |
182 |
120 |
15000 |
76 |
ED-250W/830 |
250 |
3.0 |
25000 |
≥85 |
3000 |
E40 |
225 |
155 |
15000 |
91 |
ED-250W/940 |
250 |
3.0 |
23000 |
≥90 |
4200 |
E40 |
225 |
155 |
15000 |
91 |
ED-315W/830 |
315 |
3.15 |
35000 |
≥85 |
3000 |
E40 |
285 |
185 |
15000 |
122 |
ED-315W/940 |
315 |
3.15 |
33000 |
≥90 |
4200 |
E40 |
285 |
185 |
15000 |
122 |
T-70W/830 |
70 |
0.98 |
6500 |
≥85 |
3000 |
G12 |
100 |
56±2 |
15000 |
20 |
T-70W/940 |
70 |
0.98 |
6300 |
≥90 |
4200 |
G12 |
100 |
56±2 |
15000 |
20 |
T-100W/830 |
100 |
1.2 |
9100 |
≥85 |
3000 |
G12 |
100 |
56±2 |
15000 |
20 |
T-100W/940 |
100 |
1.2 |
8900 |
≥90 |
4200 |
G12 |
100 |
56±2 |
15000 |
20 |
T-150W/830 |
150 |
1.8 |
15000 |
≥85 |
3000 |
G12 |
110 |
56±2 |
15000 |
20 |
T-150W/940 |
150 |
1.8 |
13500 |
≥90 |
4200 |
G12 |
110 |
56±2 |
15000 |
20 |
TD-70W/830 |
70 |
0.98 |
6500 |
≥85 |
3000 |
Rx7s |
117.6 |
58.8±2 |
15000 |
21 |
TD-70W/940 |
70 |
0.98 |
6100 |
≥90 |
4200 |
Rx7s |
117.6 |
58.8±2 |
15000 |
21 |
TD-100W/830 |
100 |
1.2 |
9000 |
≥85 |
3000 |
Rx7s |
117.6 |
58.8±2 |
15000 |
21 |
TD-100W/940 |
100 |
1.2 |
8500 |
≥90 |
4200 |
Rx7s |
117.6 |
58.8±2 |
15000 |
21 |
TD-150W/830 |
150 |
1.8 |
15000 |
≥85 |
3000 |
Rx7s |
135.4 |
67.7 |
15000 |
21 |
TD-150W/940 |
150 |
1.8 |
13500 |
≥90 |
4200 |
Rx7s |
135.4 |
67.7 |
15000 |
21 |
|
|
|

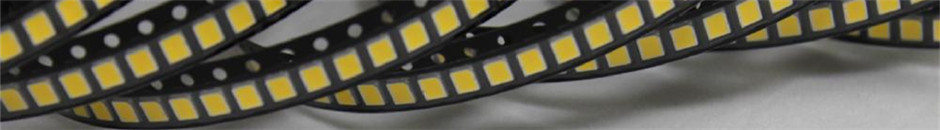

LED
SMD
|
|
Features:
Package size: 2.8 x 3.5 x 0.7
High efficiency, high luminous flux maintenance
factor, high reliability and stable performance.
Low light failure, good light uniformity, wide
viewing angle.
High-quality package materials, good heat
dissipation, long service life.
Compatible with automatic placement equipment.
Compatible with reflow solder process.
Applications:
Automotive telecommunication, indicators, LCD back-lights,
illuminations.
|
|
|
LED emitters, LED chips, SMD LED emitters,
LED SMD chips, LED packages |
Type
|
Power(W)
|
CCT |
CRI |
VF(V) |
IF(mA) |
Dice
Material |
Typ |
Max |
JUL-S2835P02V3 |
0.2 |
2700K~6500K
|
80 |
3.1 |
3.4 |
60 |
InGaN |
JUL-S2835P02V3 |
0.5 |
2700K~6500K
|
80 |
3.1 |
3.4 |
150 |
JUL-S2835P05V9
|
0.5 |
2700K~6500K
|
80 |
9.4 |
9.6 |
60 |
|
|
LED work light/CNC machine tool light |
|
|
|
|
|
|
|
|
|
Features:
Aerospace aluminum shell material, with high strength and corrosion
resistance.
Using 5mm thick tempered glass, stronger explosion protection
capability.
Spring conduit design, flexible length, strong adaptability.
With Bridgelux chip, high light efficiency, long life.
Can add light diffuser plate to reduce product glare.
Modular design of the whole machine, easy product maintenance and
repair.
CE certificate, Ingress Protection 65 certificate.
Applications:
Apply for lighting in the field of precision production lines, CNC
machine tools, machining centers, electrical cabinets, cold storage and
commercial venues. |
|
|
LED work
light, CNC machine tool light, lathe work light, CNC LED machine
lamp |
Work voltage:
24VAC/DC ± 10% AC85-265V |
Luminous efficiency:
100Lm/W |
Light source life:
50000 hours |
Color rendering index:
Ra≥85 |
Storage temperature:
-30°C~70°C |
Rated power:
16W, 12W, 8W |
Light angle:
120° |
Ambient temperature:
-25°C~50°C |
Color temperature:
5500K |
Diffuser
plate (OP): white PC |
Protection class:
IP65 |
|
|
